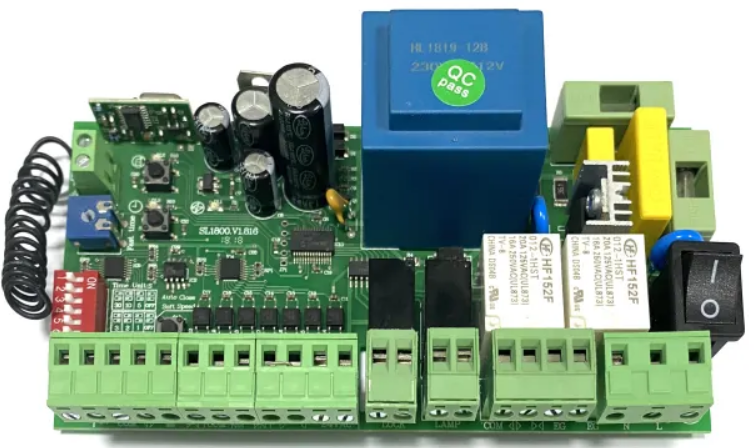

كنترولر ماتور بوابة سحاب نوع هاي لاند صيني 230 فولت
- يمكن برمجة بوابة بطول 25 متر
- يمكن اضافة 30 ريموت
2.1 Working voltage: 220VAC/110VAC,50Hz/60Hz
2.2 Temperature range: -20℃ to 60℃
2.3 Loading capacity : 1 HP 220VAC ; 0.5 HP 110VAC
2.4 Built-in fuse: electric circuit(0.5A); Motor(10A),Please exchange appropriate fuse accoding to loading capacity
2.5 Time of soft-start : 1S ; soft-stop: 1S/2S/3S are optional
2.6 Running time: Adjustable from 5s to 100s ----S4 is to set up
2.7 Frequency: 433.92MHz
2.8 Transmitter stored: 30PCS
2.9 Output voltage: AC24V
2.10 Output with electric lock: normally-closed contact
2.11 Output with flash lamp: AC220V/AC110V
2.12 External switch (open,stop,close in a loop)
2.13 External limit ( DIP8 to select NO and NC)
2.14 External infrared (NC contact)
2.15 Auto close time is adjustable: (5S,10S,30S are optional by using DIP1,DIP2)
2.16 Soft start function is optional by DIP5
2.17 Installation at left or right side is optional by DIP6.
2.18 Single / three button control is optional by DIP7
2.19 Size: 155*77*38mm
