ماتور كراج رول ACM لغاية 170 كغم | راس واحد 2 انش

لمعرفة تفاصيل اكثر عن ابواب الرول واختيار المحرك المناسب لكل باب اضغط هنا

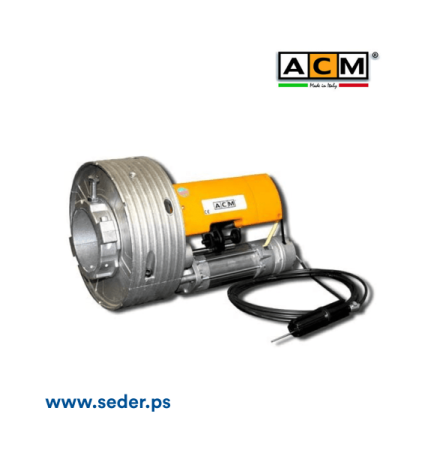

central security rolls , type unititan e , of the Italian company acm s.r.l . Security Rolls with shaft with threaded weight compensation springs. The motor is adjusted to a 60mm diameter and drums (springs) Φ200 / Φ220mm. The torque of the motor is 145nm while its supply is 230 Volt AC (single -phase current). It has built -in terminal switches and electron and the release (roll manipulation) is made through a cable. The package also includes a long cable to facilitate the installation.

the mechanism is non-reversible (when the motor does not work, the roll cannot be opened by hand) and is accompanied by a cable and device Remote (“pine cones”) for removal of the electrican and inner rolleri in the event of power outage.

Motor trunk and drum made of casting aluminum.
Gears and bearings made of steel.
The drum is based on bearings.
The motor axis is mounted on double bearings.
4 -pole asynchronous motor, with a speed of rotation 1400 RPM
Insulation Class B (Nema Motor Insulation Temperature Rating)
Thermal Motor Protection: 160 ° C
Easy to set up Terminal Cutters Open and Closed position
Suitable for Rolls up to 6m high
Connection cable: 4 × 1 mm²
Operating temperature: -20 ° C to +85 ° C
Embedded electron with a disintegration via cable
