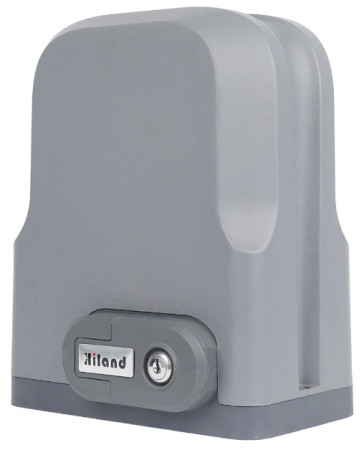

ماتور بوابة سحاب صيني لغاية 600 كغم

Basic technical parameters:

• Travel speed: 11-13m/min
• Maximum weight of the supported door – 600kg
• The range of pilots > 50 m (depends on propagation conditions)
• Operating Volume < 60dB
• Drive power 14N.m
• Shaft height – 46mm
• Motor power 280W
• Mechanical limit switches
• Remote control frequency 433.92MHz.
• Operating temperature: - 20 to + 70 deg C

Dimensions: 237 x 215 (with sprocket) x 290 mm

Driver Features

• Soft start and slowdown when closing.
• Automatic learning of the gate distance.
• The gate-gate function opens to about 1 m after using a separate remote control channel.
• Adjustment switch for left and right hand operation.
• The "watchman" function of the drive as long as the button is held.
• Drive control via three buttons on the remote control or with one.
• Automatic closing function after preset time.
• Separate motor power adjustment for closing and opening the gate.
• Adjustable frame fast run times.
