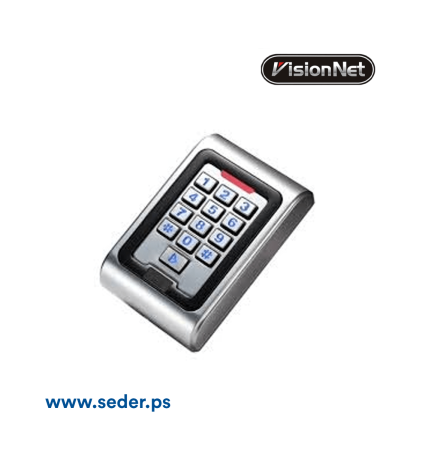

أكسس كونترول مستقلة K5

للتعرف على طرق ربط هذا الجهاز مع الاقفال الكهربائية اضغط هنا

Features

 Strong Zinc Alloy Electroplated anti-vandal case

 Indoor use

 Full programming from the keypad

 2000 uses, supports Card, PIN, Card + PIN

 Can be used as a stand alone keypad

 Backlight keys

 Wiegand 26 output for connection to a controller

 Adjustable Door Output time, Alarm time, Door Open time

 Very low power consumption - 30mA

 Fast operating speed, <20ms with 2000 users

 Lock output current short circuit protection

 Easy to install and program

 Built in light dependent resistor (LDR) for anti tamper

 Built in buzzer

 Red, Yellow and Green LEDS display the working status

  Specifications

Operating Voltage

12V DC

User Capacity

2000

Card Reading Distance

 3-6cm

Active Current

<60mA

Idle Current

25±5mA

Lock Output Load

Max 3A

Alarm Output Load

Max 20A

Operating Temperature

45~60

Operating Humidity

10%- 90% RH

Adjustable Door Relay time

 99-0seconds

Adjustable Alarm Time

 3-0minutes

Wiegand Interface

Wiegand 26 bit

Wiring Connections

Electric Lock, Exit Button,, External Alarm

Dimensions

L120 x W80x H25 mm
